1、 Introduction

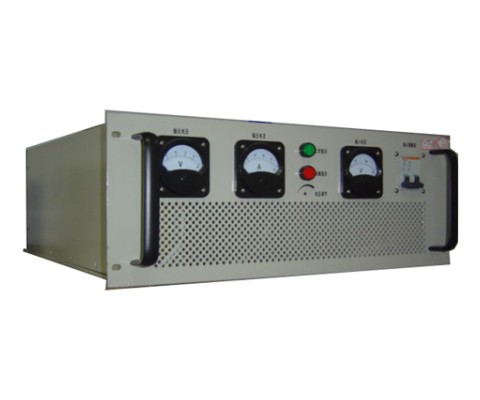

This product is the interference test equipment developed by our company for a military system. It is specially used by the air force, navy and army in the environment of strong electromagnetic interference. It can realize wide range adjustment and output of frequency and voltage
High precision, good waveform quality, small size, easy to carry. It is mainly used in experimental test, production test and other simulation test occasions.

2、 Executive standard
Gjb181 aircraft power supply characteristics and requirements for electrical equipment
Gjb572 aircraft ground power supply characteristics and general requirements
GJB151A requirements for electromagnetic emission and sensitivity of military equipment and subsystems
Gjb152a military equipment and subsystem electromagnetic emission and sensitivity measurement
GJB150 environmental test method for military equipment
Gjb1910 general specification for aircraft ground power vehicle



1. There is a dc28v output interface that can inject interference. The interface shall be completely isolated from the electricity and the ground. The output voltage can be adjusted in the range of dc16-32v, and the output current shall not be less than 5A;

2. The interference can be generated by interference generator, which can be disassembled and calibrated separately;

3. The interference generator can generate the following three kinds of interference, which can be manually switched and adjusted;

4. Provide a channel of external interference interface, external equipment injection interference;

5. Each interference signal can only be injected separately;

6. Voltage spike

Voltage peak range: 0-5V;

Peak pulse width > 10ms;

Frequency: 50 times / min;

With monitoring interface, it can be monitored by external monitoring equipment;

7. White noise

Level peak value: 1.5V;

The size can be adjusted manually, with monitoring interface and external monitoring equipment for monitoring;

8. Sine wave with fixed frequency

Level peak value: 1.5V

Frequency adjustable range: 10Hz ～ 1MHz

The size can be adjusted manually, with monitoring interface and external monitoring equipment for monitoring.
