1、 Introduction

DCL series multi-channel DC stabilized power supply is a high-precision power supply with single-phase or three-phase input and DC output. It has excellent electronic characteristics such as ultra-high accuracy, high accuracy, high stability and so on. It is on the production line

Can provide ultra-low ripple DC power supply, make the product performance more perfect. It has perfect protection circuit and can meet the user's simple and convenient use needs. Compared with switching power supply, it has precision

High, small ripple, no high-frequency radiation interference, wide application. This power supply can be used to supply containers, relays, resistors and other components for sophistication and testing, as well as thermistors, motors and other electronics

Experimental test of components. It is widely used in well-known capacitor manufacturers, resistor factories and other electronic components production units, scientific institutions and other research and development units.

2、 Main purpose

1. Aluminum foil, guide needle formation, corrosion, tantalum electrolytic activation;

2. DC motor detection and aging; electric vehicle motor detection and aging;

3. Detection and aging of resistor, relay, motor and other electronic devices;

4. The electrolytic capacitor is sophisticated, and the tantalum capacitor is energized;

5. Experienced in resistor, relay, motor and other electronic components, routine test;

6. All other occasions where DC power supply is required.

1. Specification range: the maximum output voltage is 0-500v, and the maximum output current is 0-100A (customized according to the user's requirements);

2. Constant voltage and current: the voltage and current are continuously adjustable from zero, and the constant voltage and current are automatically converted;

3. Over current alarm: the alarm current value is adjustable;

4. Overvoltage protection: voltage protection value can be adjusted;

5. Short circuit protection: allow long-term short circuit or short circuit startup under any working condition;

6. Overload protection: power supply or load failure, power tripping protection;

7. Short circuit alarm: when the output voltage is short circuit, the power supply alarm (optional);

8. Automatic discharge: for capacitive load shutdown discharge (optional);

9. Output display: LED liquid crystal display;

10. Pulse operation: it can be equipped with a time controller to form a DC pulse power supply (optional);

11. Intelligent: 232 interface connection (optional);

12. Output: multi output different voltage and current.

1. Rated input power: single-phase 220V / 50Hz ± 20%

2. Rated output voltage: dc180v voltage regulation range: dc100v ～ 200V. Dc18v voltage regulating range: ± 20%



3. Rated output current: dc180v output current: 5A, instantaneous output current ≥ 30a, duration ≤ 30ms. Dc18v output current: 15A.



4. Output ripple: dc180v: < 0.4% dc18v: < 1%



5. Load adjustment rate: dc180v: < 1% dc18v: < 1%



6. Efficiency: ≥ 82%



7. MTBF ≥ 10000 hours



8. Load characteristics: resistive load



9. Protection function: over and under voltage and over-current protection of input and output



10. Output voltage characteristics: the power supply shall be in the process of soft start. After the power supply is started, the output voltage rises slowly, with rise time ≤ 5S



11. Input and output isolation voltage ≥ 1000V, two output channels are isolated from each other.

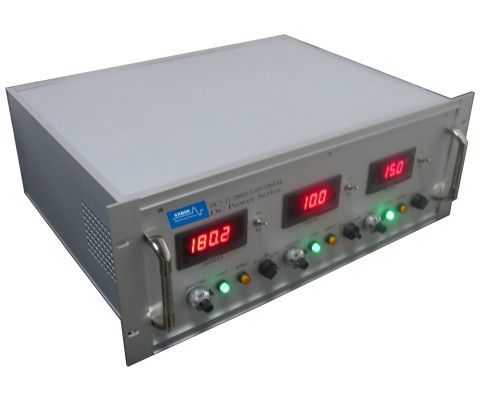

12. Output display: independent display of two output voltage and current digital meters



13. Output off and on mode: the power supply is equipped with main control switch and two output control switches; the two output control switches have the interlocking function of local control K0 and remote control K1.



Function introduction of K0 and K1:



Opening process: when the switch is in the off position, there is no output from both channels. When it is turned to the 18V position, it is 18V output. When it is turned to the 200V position, it is 200V output after a delay of 20s (the delay time is adjustable). At this time



18V hold output.



Shutdown process: when the output control switch is turned from 200V position to 18V position, the 200V output is turned off (the shutdown time is less than 20s); when the switch is turned from 18V position to off position, the 18V output is turned off (turned off) after a delay of 20s



The time is adjustable), at this time, 200V continues to maintain no output.



14. Input power-off protection function: during the use of the power supply, after the external AC power is suddenly cut off, the power supply enters the protection, 18V and 200V have no output, and the output control switches K0 and K1 must be turned to the off position



If the opening process is repeated again, the two outputs can work normally.



15. Output regulation: the two output voltages are regulated by the voltage regulation potentiometer installed on the front panel, and the position can be locked.



16. Case specification: 19 inch standard 4U case is selected, and the case depth is 400mm.
